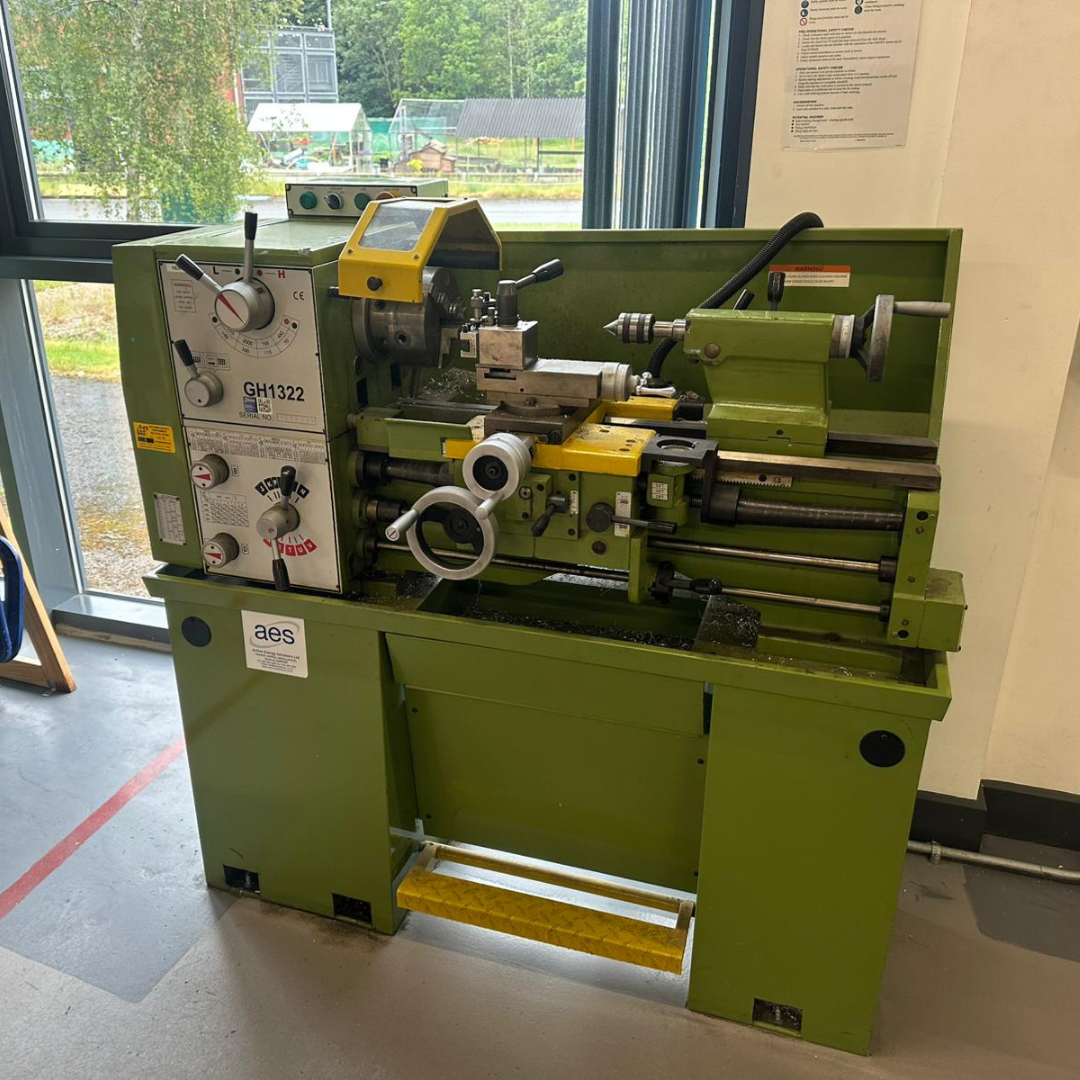

The Warco GH 1322 Tool Room Lathe Machine is a versatile geared-head lathe built for precision machining applications. With a 330 mm swing over bed and 525 mm distance between centers, it offers excellent performance for machining shafts, bushings, components, and repair parts.
The machine comes equipped with 3-jaw and 4-jaw chucks, a quick-change tool post, and a chuck guard for improved productivity and safety. Its geared-head design provides reliable power transmission and spindle speeds ranging from 70 to 2000 RPM, making it suitable for a wide variety of turning operations.
Featuring metric and imperial threading capabilities, precision taper roller bearings, and a robust cast-iron construction, the Warco GH 1322 is a dependable solution for tool rooms, maintenance workshops, educational institutions, and engineering units.
Key Features
- Geared Head Tool Room Lathe
- 330 mm Swing Over Bed
- 525 mm Distance Between Centers
- 3-Jaw & 4-Jaw Chucks Included
- Quick-Change Tool Post
- Metric & Imperial Thread Cutting
- MT5 Spindle Taper
- Chuck Guard for Safety
- Taper Roller Bearing Spindle
- Excellent Working Condition
Technical Specifications
| Specification | Details |
|---|---|
| Make | Warco |
| Model | GH 1322 |
| Machine Type | Geared Head Tool Room Lathe |
| Maximum Swing | 330 mm |
| Centre Height | 165 mm |
| Distance Between Centres | 525 mm |
| Longitudinal Travel (Z) | 325 mm |
| Cross Slide Travel (X) | 165 mm |
| Top Slide Travel | 70 mm |
| Spindle Taper | MT5 |
| Tailstock Taper | MT3 |
| Tailstock Quill Travel | 76 mm |
| Spindle Bore | 38 mm |
| Chuck Mount | D1-4 Camlock |
| Spindle Speeds | 70 – 2000 RPM |
| Motor Power | 1.5 kW |
| Voltage | 440V, 3 Phase |
| Weight | 500 kg |
| Machine Dimensions | 1335 × 750 × 1330 mm |
| Condition | Excellent Working Condition |
Contact us today for pricing, availability, and machine inspection details.
