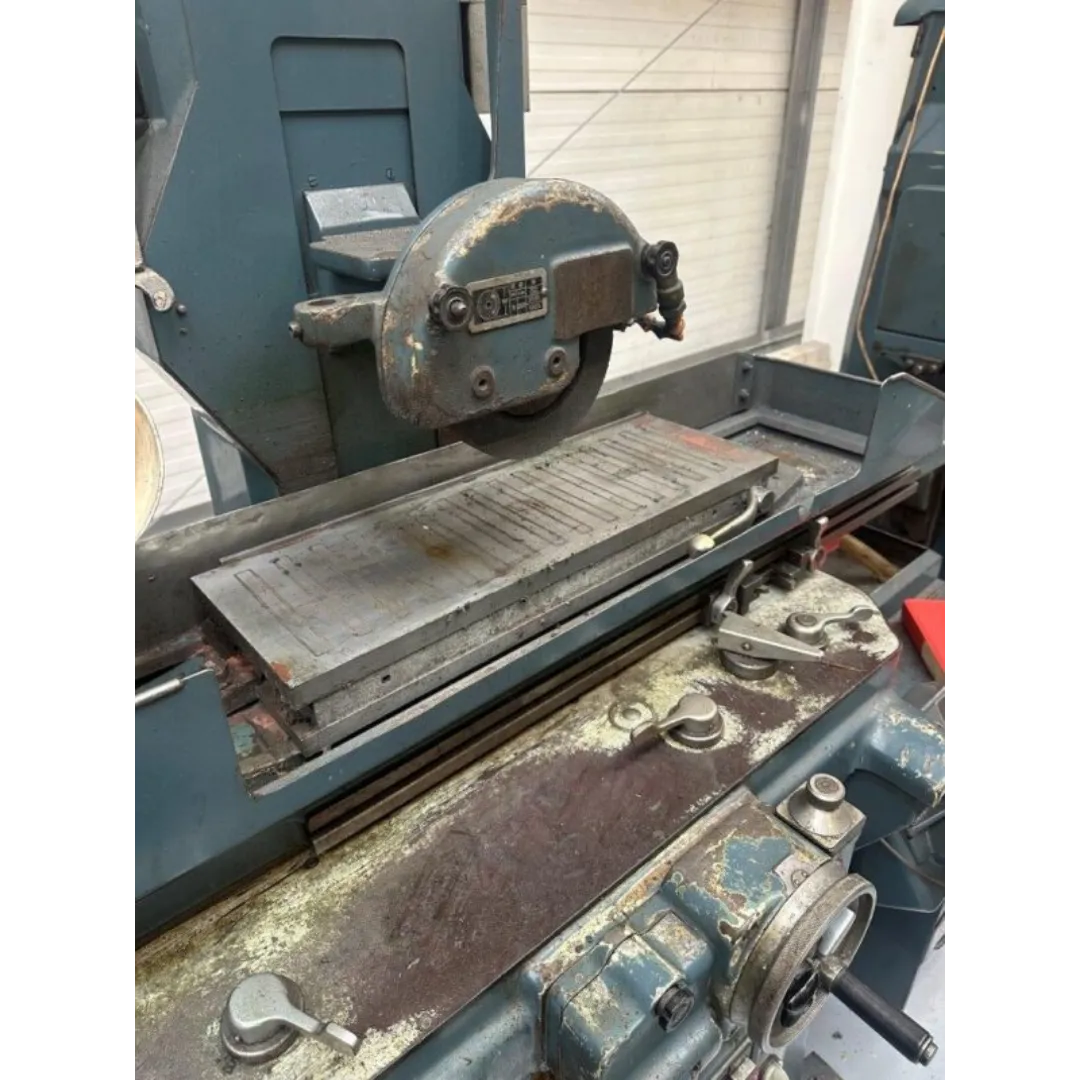

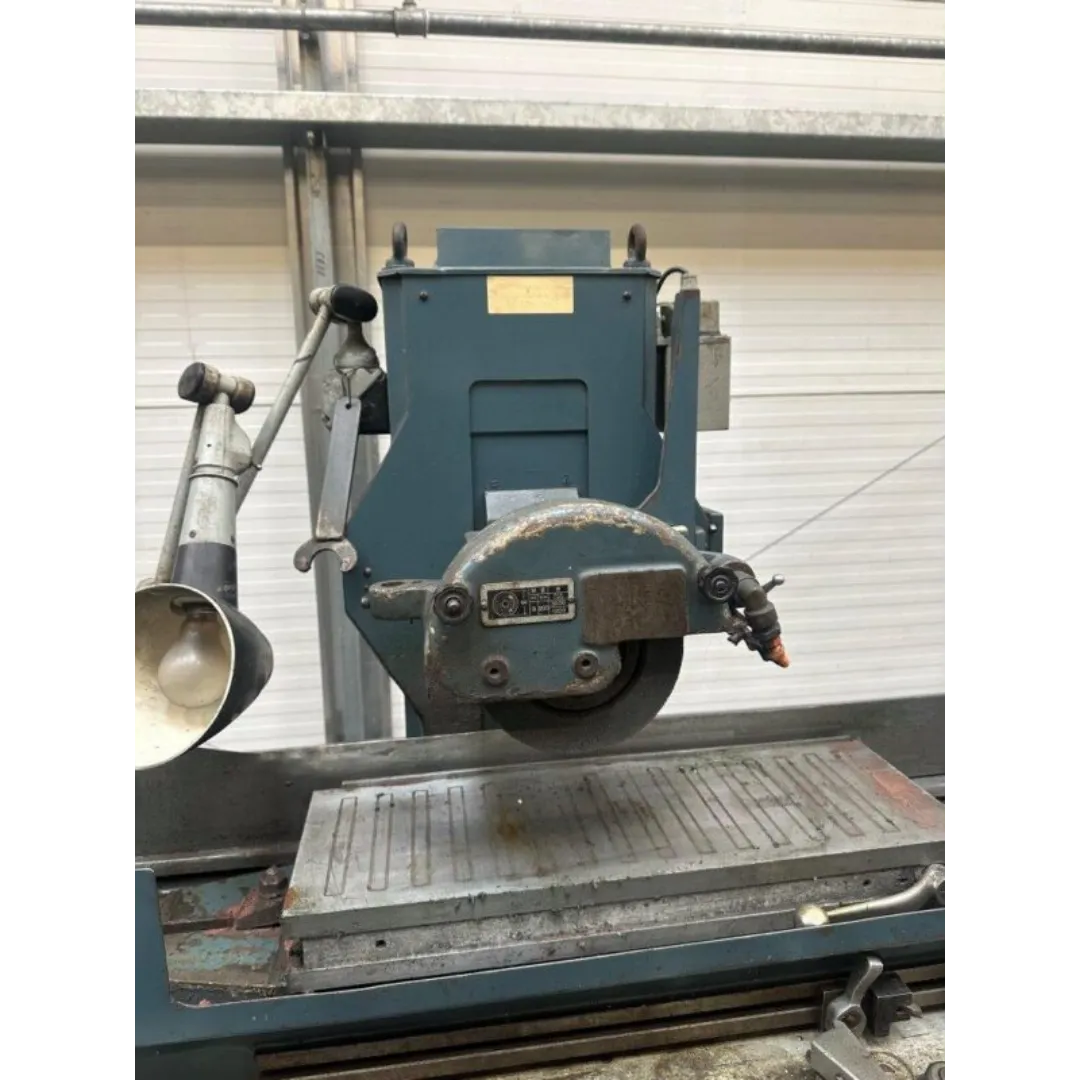

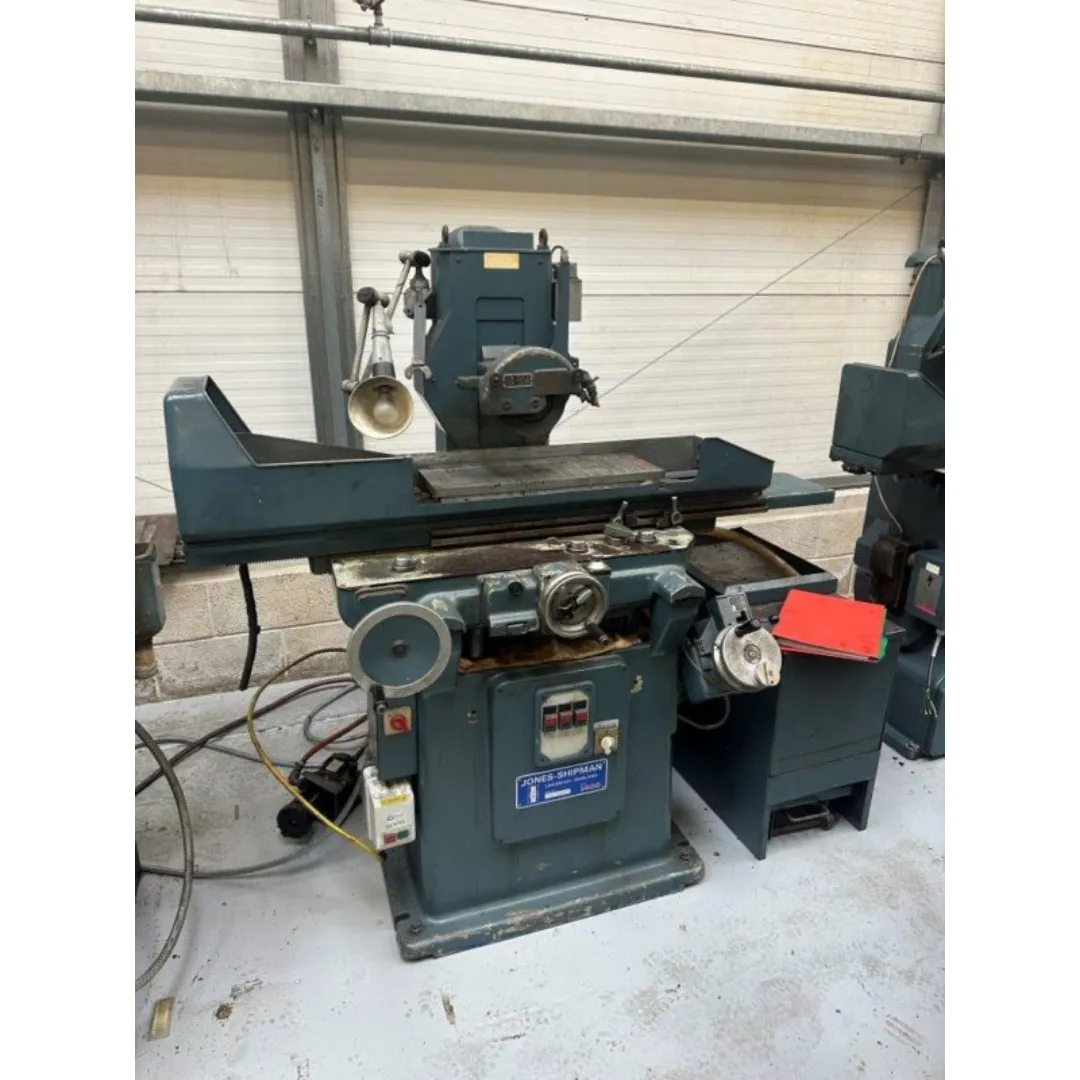

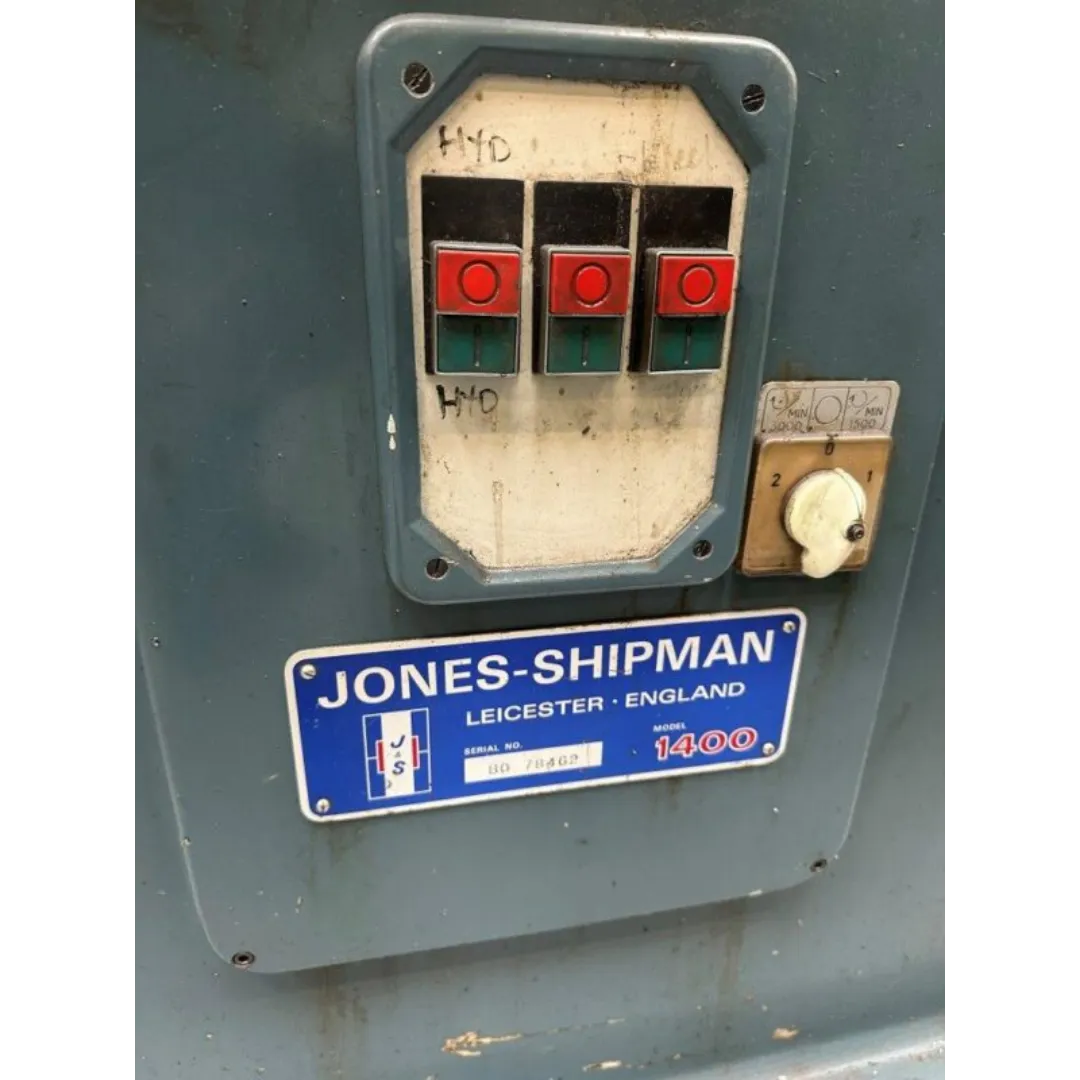

The Jones & Shipman 1400 Surface Grinder is a high-precision automatic grinding machine manufactured in England and built for demanding surface grinding operations. With a grinding capacity of 204 mm × 610 mm and a longitudinal table travel of 635 mm, the machine offers excellent performance for precision components, dies, molds, fixtures, and tooling applications.
Equipped with a 204 mm × 460 mm magnetic chuck and a precision wheel head featuring 1-micron resolution, the machine delivers outstanding accuracy and surface finish quality. Its robust construction, smooth table movement, and dependable grinding performance make it suitable for production environments as well as tool room applications.
Built to the renowned Jones & Shipman standards, the Model 1400 remains one of the most trusted surface grinders for precision engineering work.
Key Features
- Automatic Surface Grinding Machine
- Grinding Capacity: 204 × 610 mm
- Longitudinal Table Travel: 635 mm
- High Precision 1 Micron Resolution
- Magnetic Chuck Included
- Heavy-Duty Construction
- Excellent Surface Finish Quality
- Suitable for Tool Rooms & Production Units
- Reliable England-Made Machine
- Excellent Working Condition
Technical Specifications
| Specification | Details |
|---|---|
| Make | Jones & Shipman (England) |
| Model | 1400 |
| Machine Type | Automatic Surface Grinder |
| Grinding Capacity | 204 × 610 mm |
| Longitudinal Table Travel | 635 mm |
| Grinding Wheel Size | 204 mm Diameter × 20 mm Width |
| Magnetic Chuck Size | 204 × 460 mm |
| Maximum Height (Table to Wheel Centre) | 360 mm |
| Least Count | 1 Micron (0.001 mm) |
| Condition | Used |
| Working Condition | Excellent |
Contact us for pricing, availability, and machine inspection details.
